What equipment route is usually considered?

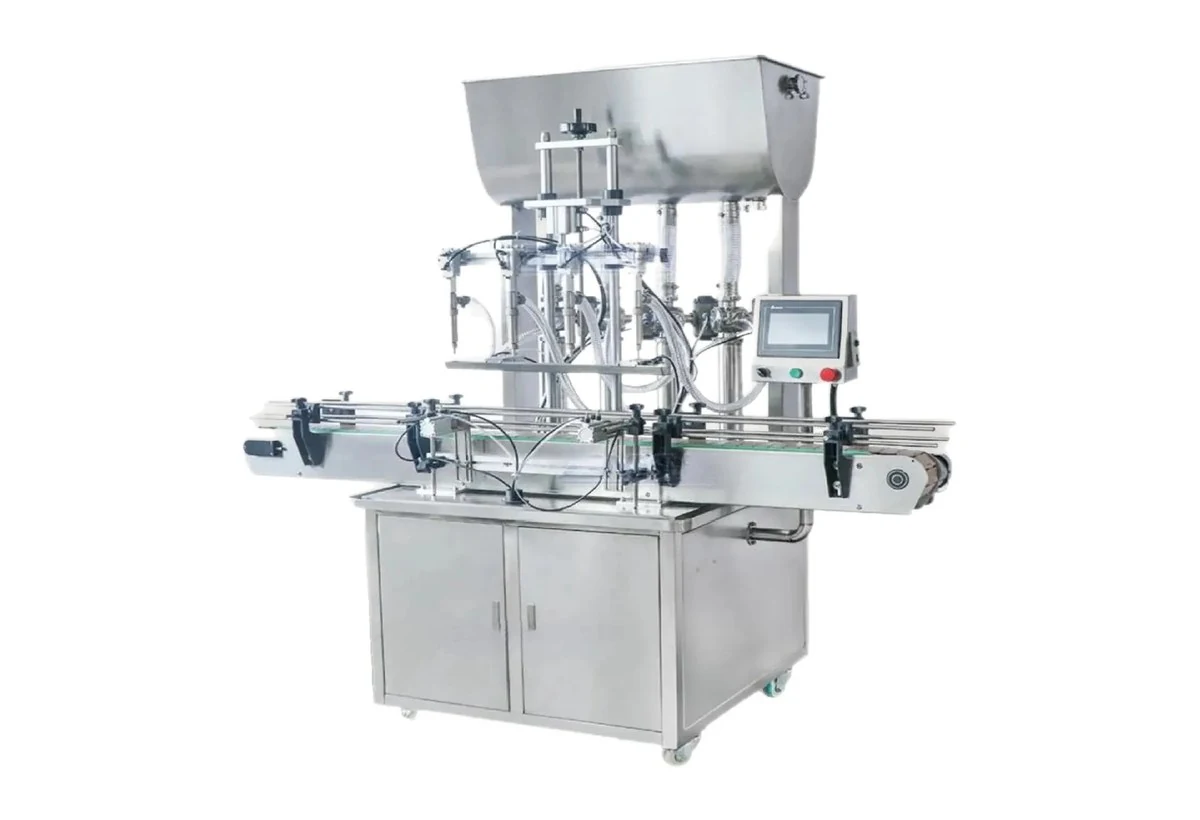

A piston filling machine uses a cylinder and piston to meter a repeatable volume. It can suit sauces, jams, chutneys, pastes and creams, including some products with pieces, when the valve, hose and nozzle passages are large enough and the product can be drawn into the cylinder consistently.
Understand the complete draw-and-discharge cycle
During the intake stroke, product enters the cylinder through the inlet side of the valve. During discharge, the valve redirects the dose to the nozzle. Product refill, valve switching, piston speed and nozzle shut-off all affect cycle time and presentation.
A nominal cylinder range indicates possible volume displacement, not guaranteed accuracy for every product. Air, separation, inconsistent feed and compressible ingredients can change the delivered result.
Cylinder volume
Sets the mechanical dosing range and may use one or multiple strokes for a pack.
Valve design
Controls inlet and outlet flow and is often the key particulate restriction.
Piston speed
Influences shear, pressure, refill and discharge behaviour.
Nozzle cut-off
Determines strings, drips, splash and the cleanliness of the finished pack.
Check whether the product can refill the cylinder consistently
Very thick, aerated or separated products may not enter the cylinder uniformly without a stable hopper, sufficient inlet area or assisted feed. Conversely, an over-pressurised feed can create leakage or inconsistent valve behaviour.
| Stage or factor | What to define |
|---|---|
| Smooth viscous sauce | Often a suitable starting application if feed and shut-off are stable. |
| Jam or preserve | Temperature, gel behaviour and fruit passage need representative testing. |
| Chunky chutney | Requires large-bore valves and nozzles sized for pieces and fibres. |
| Mayonnaise or emulsion | Assess shear, air and product recovery after pumping. |
| Thin free-flowing liquid | May be fillable, but another principle could offer simpler or faster operation. |
| Highly compressible or aerated product | Can create volume variation that needs process control or a different approach. |
Configure hopper, valves and nozzles as an application-specific system
Heating, agitation, cylinder bore, seals, contact materials and nozzle movement should be selected from the product and cleaning brief. Avoid adding features that create unnecessary complexity or product traps.
Define dose range
Use every required volume and the allowed accuracy or fill-level limits.
Define product condition
Record temperature, viscosity range, air, pieces, fibres and separation.
Size inlet and valve
Ensure reliable cylinder refill with the most difficult normal product.
Size outlet and nozzle
Pass inclusions and control deposit placement and cut-off.
Select actuation
Choose pneumatic, servo or other drive based on control, utilities and integration.
Prove cleaning
Document drain-down, strip-down, inspection, seals and reassembly.
Choose the machine format around production volume and control needs
Piston filling can be implemented as a tabletop manual machine, pneumatic semi-automatic depositor, conveyor-mounted automatic filler or multi-head servo system. The product principles remain similar while handling, controls and cleaning complexity increase.
Manual or semi-automatic single head
Flexible packs and recipes with operator presentation.
Automatic one- or two-head filler
Conveyed containers and recipe-controlled cycles at moderate output.
Multi-head servo piston filler
Balanced product distribution, automatic container handling and integrated line controls.
Test accuracy, cut-off and cleaning across the operating range
A useful piston-filler trial includes the smallest and largest doses, difficult product conditions and enough cycles to assess valve reliability. Product recovery and cleaning should be timed rather than left as an assumption.
- Minimum and maximum dose settings
- Thinnest and thickest normal products
- Largest pieces and longest fibres
- Cylinder refill at high and low hopper level
- Dose across repeated cycles and all heads
- Nozzle cut-off after continuous running and pause
- Seal compatibility and leak inspection
- Drain-down, retained product and cleaning time
Common questions
A piston moves through a cylinder to draw in a set volume of product and then discharge it through a valve and nozzle into the pack.
Some can, provided the inlet valve, outlet valve, fittings, hose and nozzle all pass the largest normal pieces and fibres without blockage or unacceptable damage.
It can provide repeatable volumetric doses when the product feed and condition are stable. Actual performance should be measured with the intended product and dose range.
Only where product flow or the validated process requires temperature control. Heating and agitation should be justified by the product, with suitable controls and guarding.
